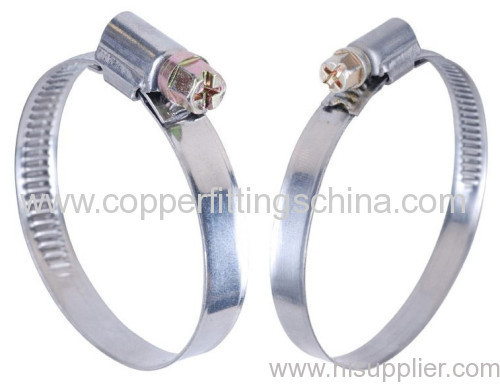

Applications of Zhejiang 9mm Worm Drive Germany Type Hose Clamp

W2                               W4/W5
Agricultural           Food Processing
automotive          Marine Industry
Hardware

Selling Points of Zhejiang 9mm Worm Drive Germany Type Hose Clamp

Their innovative housing is designed for high strength whilst remaining compact. The cold-formed stamped band is smooth on the underside and bevelled at the edges, protecting the hose from damage.

Drawings




Zhejiang 9mm Worm Drive Germany Type Hose Clamp Sizing /Clamping Range Chart

SAE Sizes	dia.min.-max.(mm)	dia.min-max.(in.)	torque performance installation(in.-lbs.)	torque performance installation(nm)	torque performance ultimate(in.-lbs.)	torque performance ultimate(nm)
1	8-12	5/16--15/32	18.0	2.0	35	4.0
2	8-16	5/16--5/8	18.0	2.0	35	4.0
3	12-20	15/32--25/32	26.0	3.0	40	4.5
4	12-22	15/32--7/8	26.0	3.0	40	4.5
5	16-27	5/8--1-1/16	26.0	3.0	40	4.5
6	20-32	25/32--1-1/4	26.0	3.0	40	4.5
7	25-40	1--1-1/9	26.0	3.0	40	4.5
8	30-45	1-3/16--1-3/4	26.0	3.0	40	4.5
9	32-50	1-1/4--1-31/32	26.0	3.0	40	4.5
10	40-60	1-9/16--2-3/8	26.0	3.0	40	4.5
11	50-70	1-31/32--2-3/4	26.0	3.0	40	4.5
12	60-80	2-3/8--3-1/8	26.0	3.0	40	4.5
13	70-90	2-3/4--3-1/2	26.0	3.0	40	4.5
14	80-100	3-1/8--3-15/16	26.0	3.0	40	4.5
15	90-110	3-1/2--4-5/16	26.0	3.0	40	4.5
16	100-120	3-5/16--4-23/32	26.0	3.0	40	4.5
17	110-130	4-5/16--5-1/8	26.0	3.0	40	4.5
18	120-140	4-23/32--5-1/2	26.0	3.0	40	4.5
19	130-150	5-1/8--5-29/32	26.0	3.0	40	4.5
20	140-160	5-1/2--6-5/16	26.0	3.0	40	4.5

Various Types are available or according to your requirements. If you have any question, Please do not hesitate to contact with us. We will give you reply as soon as possible.
