High Quality Worm Gear Hose Clips Supplier from China manufacturer

High Quality Worm Gear Hose Clips Supplier

Price:	0.1~5.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Original or Customize

Production Capacity: 50,0000/day

Delivery Date: According to the quantity c...

Technics: Casting

Material: Stainless Steel

Brand Name: TIANYIN

Standard or Nonstandard: Standard

Bandwidth: 12.7mm

Clamping Range: 51-76mm

Nature of the Factory: Industry and Trade Integrat...

Means of Transport: Ocean

Packing: Plastic bags as inner packa...

Head Code: Hexagon

Type: Union

Connection: Welding

Applications: for Automotive

Superiority: pretty appearance, corrosio...

Band thickness: 0.6mm

Certification System: ISO9001

Main Market: North America, Asia, the Eu...

Material Specifications:
Carbon steel, Galvanized iron, Stainless steel 201, 301, 304, 309, 316, 410 or according to your specific requirements

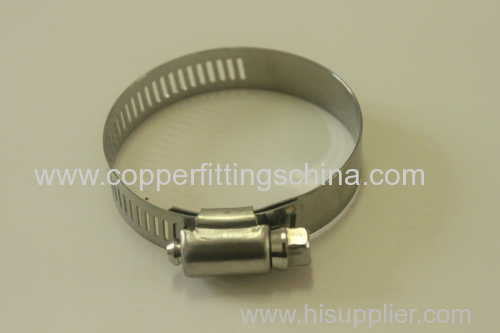

Stainless Steel American Type Hose Clamp

Material Specifications of American Type Hose clamps:
Screw: 9/32"hex-head. Carbon steel or 400/200/300 grade stainless steel.
Band: band width 10mm. Carbon steelor 400/200/300 grade stainless steel.
Housing: carbon steel or 400/200/300 grade stainless steel.

Stainless Steel American Type Hose Clamp Sizing/Clamping Range Chart:

SAE Sizes	Min.Dia.(in.)	Max.Dia.(in.)	Min.Dia.(mm)	Max.Dia.(mm)
04	1/4	5/8	6	16
05	1/4	11/16	7	17
06	5/16	7/8	8	22
08	3/8	1	10	25
10	3/8	1 1/16	10	27
12	1/2	1 1/4	13	32
16	1/2	1 1/2	13	38
20	3/4	1 3/4	19	44
24	1	2	26	51
28	1 1/4	2 1/4	32	57
30	1 3/8	2 3/8	35	60
32	1 1/2	2 1/2	38	63
36	1 3/4	2 3/4	45	70
44	2 1/4	3 1/4	57	82
48	2 1/2	3 1/2	64	89

The products

Stainless Steel American Type Hose Clamp

Standard packing

Stainless Steel American Type Hose Clamp

we have cooperated very well with many countries in the worldwide .such as Canada, British, the United States, Australia, Japan .Hope to get your trust and support.

Various types are available or accoding to customer's need.
